Description

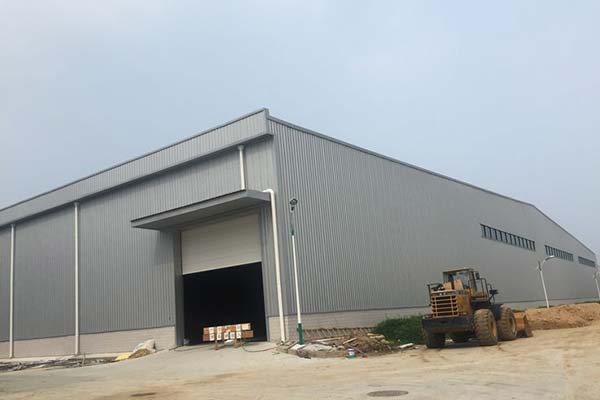

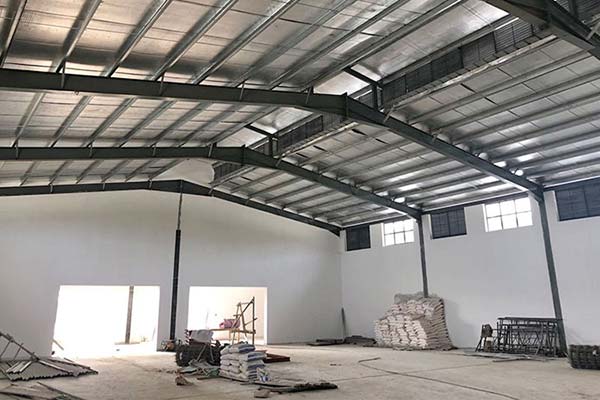

The steel structure warehouse is a light steel building composed of steel columns, steel beams, supports, purlins, etc. All steel structure components are manufactured in the workshop and delivered to the project site, fast installation, green building, and saving workforce.

The main load-bearing component of a steel structure warehouse is a steel frame, including steel columns and roof beams. After fabrication at the factory, the main steel frames and secondary frames are transported to the site for installation. All components are prefabricated and can be installed directly without cutting and drilling on-site, saving installation time and labor costs.

Prefab steel warehouses can meet a wide range of project needs-from commercial (car sheds, exhibition halls) to agriculture (metal warehouses, warehouse sheds) to industry (workshops, equipment warehouses).

The main load-bearing components of the steel structure warehouse are steel structures, including steel partition walls, steel beams, steel structure basements, walls, and roof support systems.

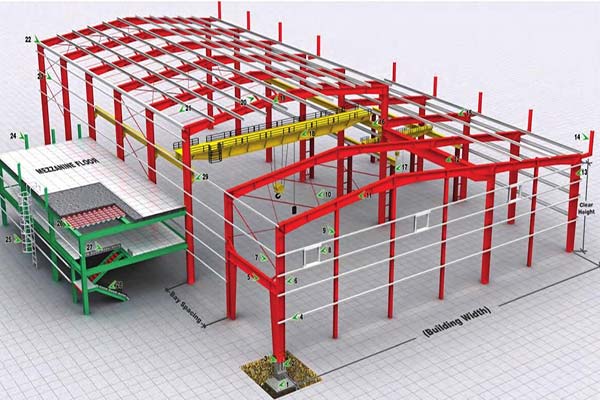

The steel structure warehouse mainly includes the following parts:

1. Embedded components, (foundation bolts used to stabilize the structure of the building).

2. Steel column, usually H-shaped steel (often connected with two C-shaped steel and angle steel).

3. Steel beams, generally H-shaped steel, (the span of the beam determines the height).

4. Roof purlins and wall enclosures: C-shaped steel and Z-shaped steel usually used.

5. The support typically uses round steel or L-shaped angle steel.

The steel structure warehouse is very durable. They are strong enough to withstand heavy snow, high winds, and strong earthquakes. The service life generally exceeds 50 years.

The walls and roof panels are hot-dips galvanized, or steel panels can also be coated with aluminum compounds to prevent rust and increase the life of the board, rust, and moisture. The roof insulated with glass wool or rock wool for heat insulation, sound insulation, and fire prevention.

The steel structure warehouse is cheap, and the construction period is fast, which is 1/3 of the ordinary construction period. The installation is simple; no professional technicians needed and save labor costs.

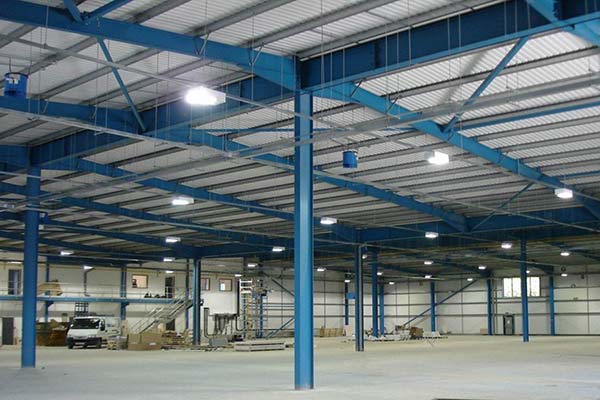

We designed the warehouse to maximize the use of internal space. There are free columns inside the warehouse, and the forklift can be used freely to improve warehouse utilization. The prefabricated steel structure warehouse is durable. It can withstand severe weather such as rain, snow, wind, and has excellent shock resistance. And the wall and roof cladding coated with aluminum compounds to prevent rust and extend service life.
