Product

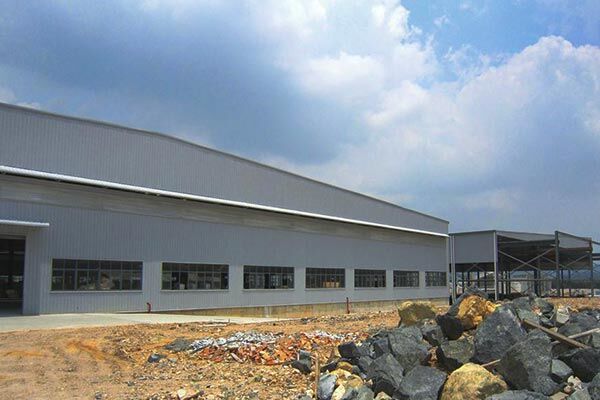

steel structure factory building

Type: steel structure building
Standard: GB, ASTM, DIN, JIS, AISI, BS
Material: Q235/Q235B/Q345/Q345b
Forming: welded
Connection: bolt connection
Member: metal beam, column, purlin
Structural: H-beam, C/Z shape steel
Design: free design/CAD/Mts/3D3s/Tarch
Certification: ISO9001/BV/SGS/CE/EN1090

Description

Steel structure factory building is a new type of building structural system. This type of building structural system is a frame structure composed of columns and beams, and steel components such as H-shaped steel, C-shaped purlins, Z-shaped purlins, and U-shaped purlins. The roof and walls use various panels and other components (such as doors and windows) to form an enclosure system. The advantages of steel structure buildings are wide applicability, high span, high strength, lightweight, low cost, insulation, energy-saving, beautiful appearance, short construction time, good insulation effect, long service life, space saving, good seismic performance, flexible layout, etc.

We can provide customized solutions according to your requirements. Roof and wall cladding, doors and windows can use different styles of materials, which can provide unique solutions for your workshop construction.

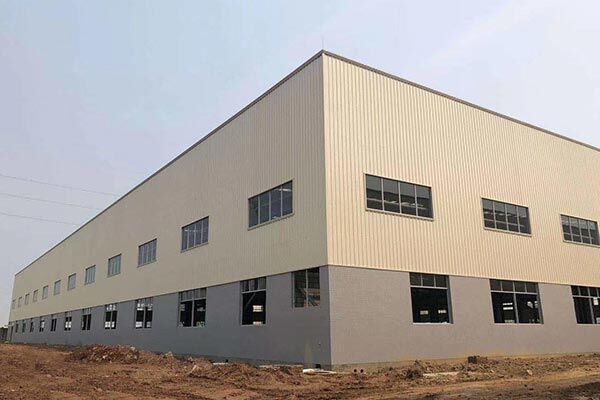

steel structure factory building

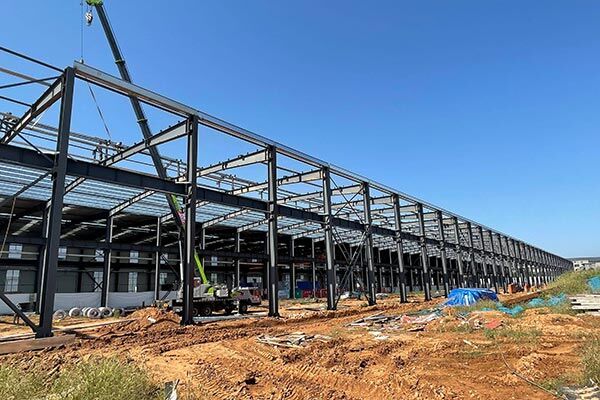

Steel structure factory buildings are the most common portal steel structures. Portal steel frame is a traditional structural system. The upper main frame includes rigid frame beams, rigid frame columns, supports, purlins, tie beams, etc.

Principles of Mechanics

The steel structure factory building is mainly composed of horizontal steel frames composed of columns and beams. A steel frame is a planar force system. Set up roof and column supports to ensure longitudinal stability.

Steel frame

The rigid frame columns and beams made of H-shaped steel transmit various loads to the foundation through the columns and beams.

Support and tie beams

The rigid support is made of hot-rolled steel, usually angle steel. Flexible support is made of steel bars. The tie beam is a circular steel pipe, forming a closed system with the support.

Roof purlins and wall beams

Generally, C-shaped steel and Z-shaped steel are used. Withstand the forces transmitted from the roof and wall panels, and transfer the forces to the columns and beams.

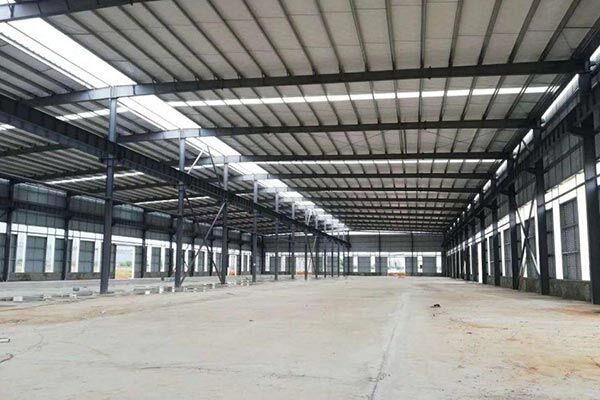

steel structure factory building

Advantages and characteristics of steel structure factory buildings

1. Features: Quick and flexible assembly, safe and reliable, thermal insulation and sound insulation, waterproof and fireproof.

2. Cost effectiveness: installation is fast and simple, significantly reducing construction time and lowering costs;

3. Durability: The entire structure is easy to maintain and has a service life of over 50 years.

4. Perfect design: The ideal design completely avoids leakage and water seepage. It also complies with national fire safety standards.

5. Carrying capacity: able to resist the influence of strong winds and earthquakes, and withstand heavy snow loads.
